輪式裝載機

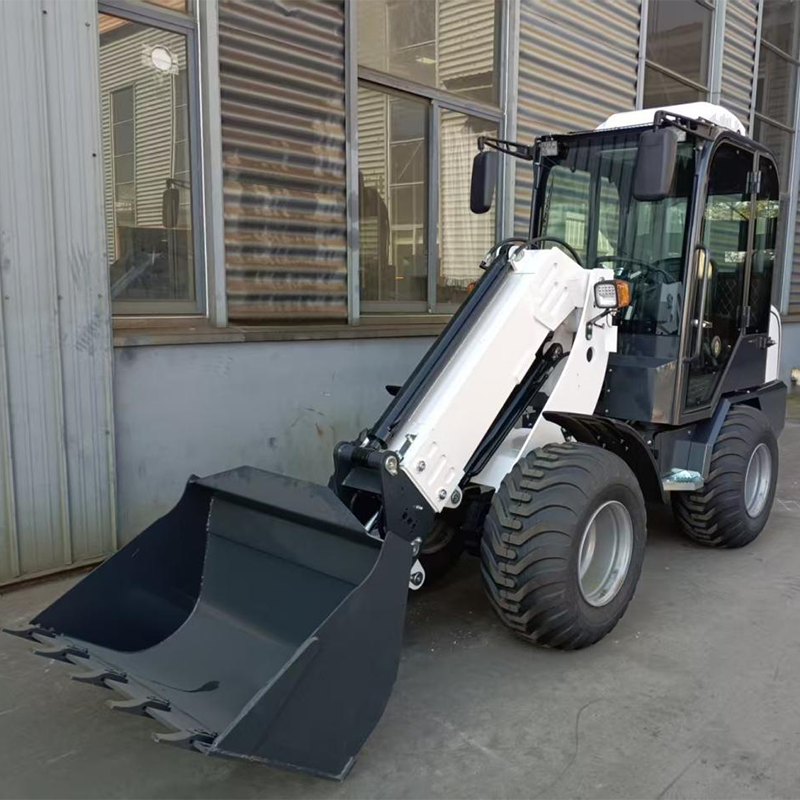

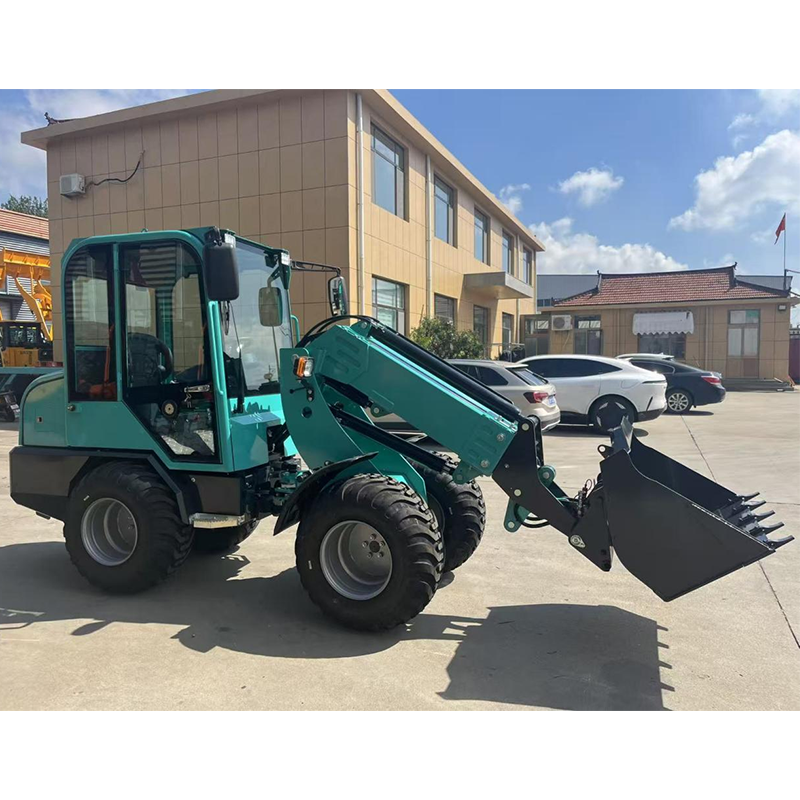

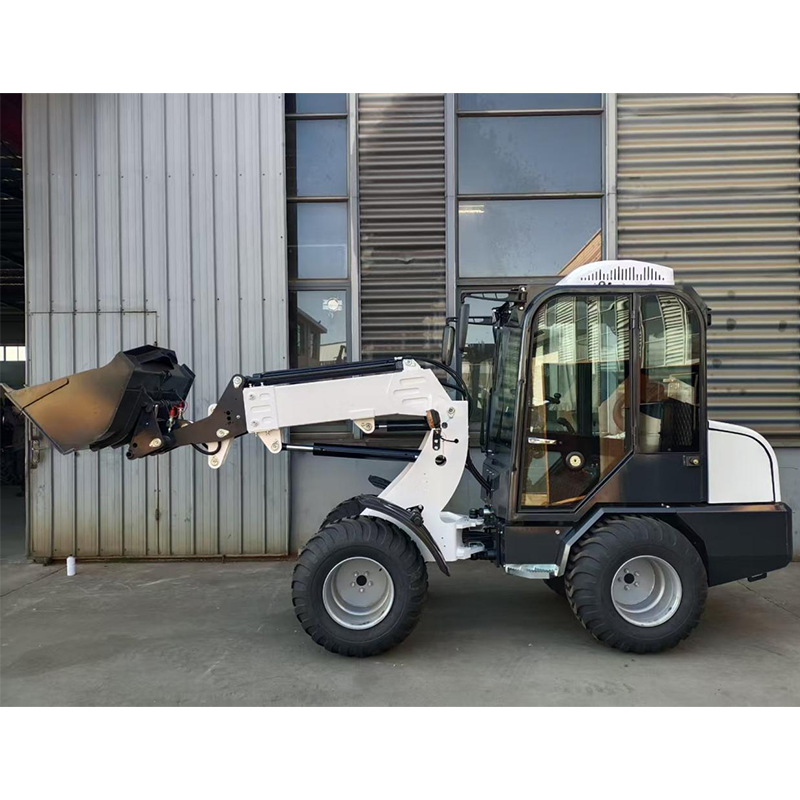

HT220T伸縮臂裝載機

產品推薦

HT220T伸縮臂裝載機參數

性能參數 performance parameter
主臂最大載重Maximum Load of Main Arm	800kg
小臂伸出最大載重Maximum Load with Small ArmExtended	450kg
車身凈重Net Weight of Vehicle Body	2080kg
鉸接轉彎角度Articulated Turning Angle	45°
爬坡高度Climbing Gradient	30%
液壓油箱容量Hydraulic Oil Tank Capacity	40L
柴油箱容量Diesel Oil Tank Capacity	40L
最大行駛速度Maximum Travel Speed	12Km/h
發動機 Engine	久保田D1105/久保田V1505Kubota D1105 / Kubota V1505 新柴 3B11Shinchaya 3B11
輪胎Tire	10,0/75-15.3400/60-15.5
尺寸參數 Size parameters (refer to 400/60-15.5 tire measurements)
車身總長度Total Length of Vehicle Body	4494mm
輪間距Wheel Spacing	1550mm
后輪到車尾距離Distance from Rear Wheels to Rear of Vehicle	1165mm
最低點收斗角度Bucket Retraction Angle at Lowest Point	51°
伸出前最大卸料高度Maximum Unloading Height Before Extension	2245mm
伸出后最大卸料高度:Maximum Unloading Height After Extension	2846mm
最高點收斗高度Bucket Retraction Height at Highest Point	4065mm
最高點收斗角度Bucket Retraction Angle at Highest Point	51°
伸出后卸料安全距離Safe Unloading Distance After Extension	1321mm
車輪總寬度Total Width of Wheels	1320mm
最高處卸料角度Unloading Angle at Highest Point	31°
伸出前卸料安全距離Safe Unloading Distance Before Extension	802mm
最小離地間隙Minimum Ground Clearance	272mm
挖掘深度Digging Depth	102mm

以上參數如有改動，恕不另行通知！獲取最新資訊，或有產品定制需求，請聯系客服人員: 問題咨詢及獲取報價
