整機基本參數Basic parameters of the whole machine

整機重量Total weight

10000KG

運輸時總長shipping length

7560(mm)

運輸時總高

Total height during transportation

2850(mm)

運輸寬度

Transport width

2260(mm)

輪胎中心距離Tire center distance

2400(mm)

輪胎規格 umber of tires

900

配重離地間隙

Counterweight ground clearance

1065(mm)

輪胎數量umber of tires

8

動臂長度Boom length

4000(mm)

斗桿長度Stick length

2400(mm)

工作范圍

Working Range

最大舉升高度Maximum lifting height

8060(mm)

最大卸載高度Maximum unloading height

5700(mm)

最大下放深度Maximum lowering depth

3860(mm)

最大舉升范圍Maximum lifting range

6880(mm)

推土鏟最大提升高度

Maximum lifting height of earth shovel

300(mm)

推土鏟最大掘地深度

The maximum digging depth of dozer

100(mm)

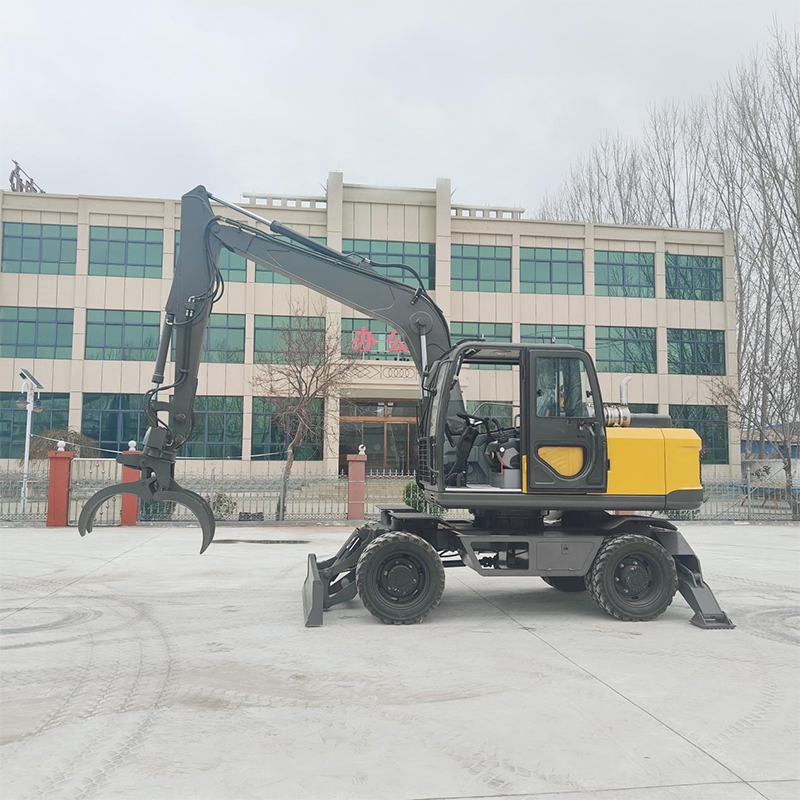

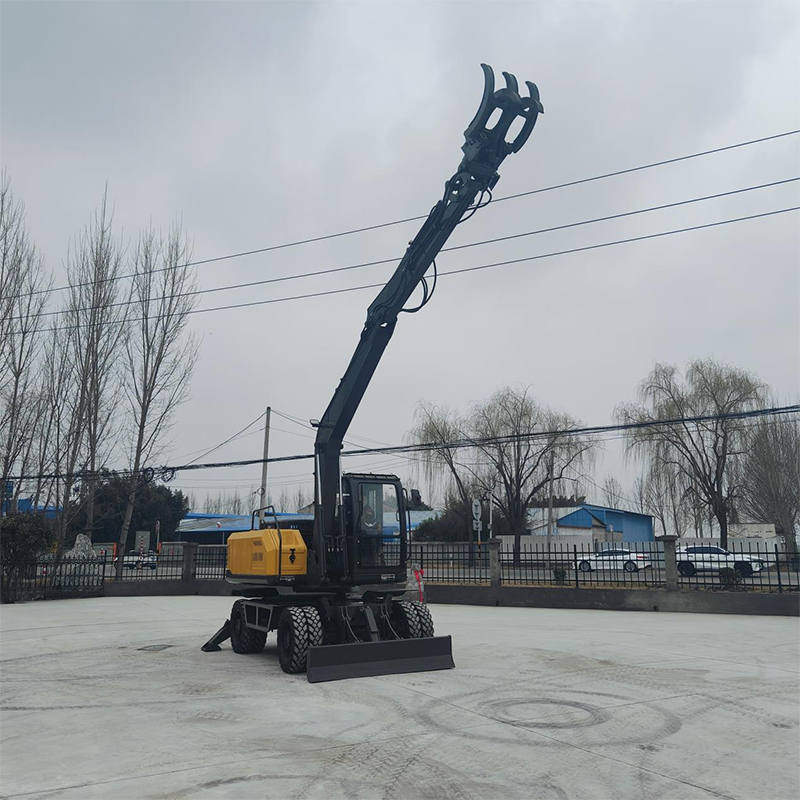

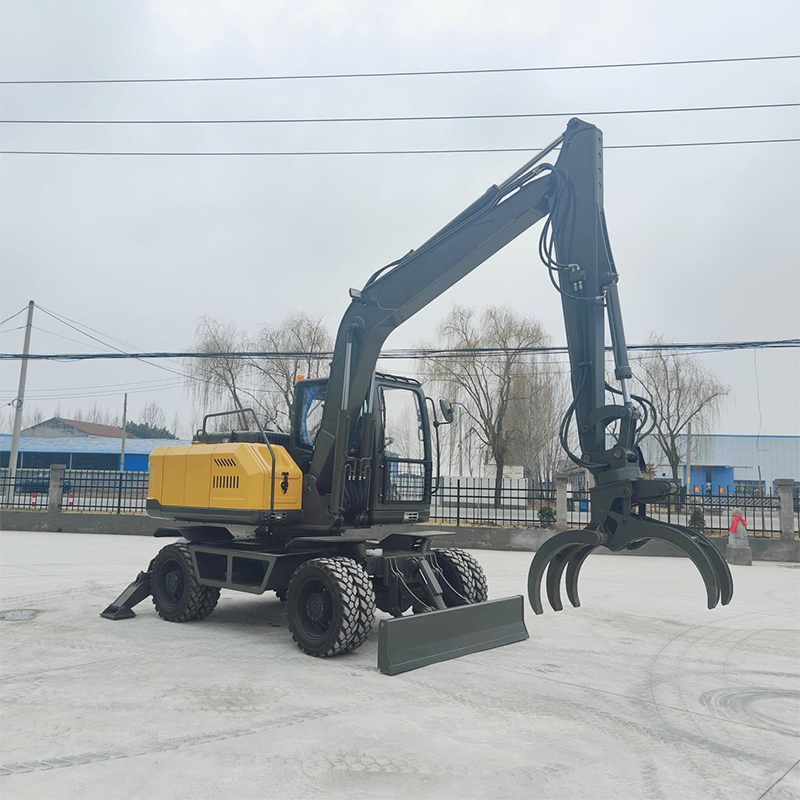

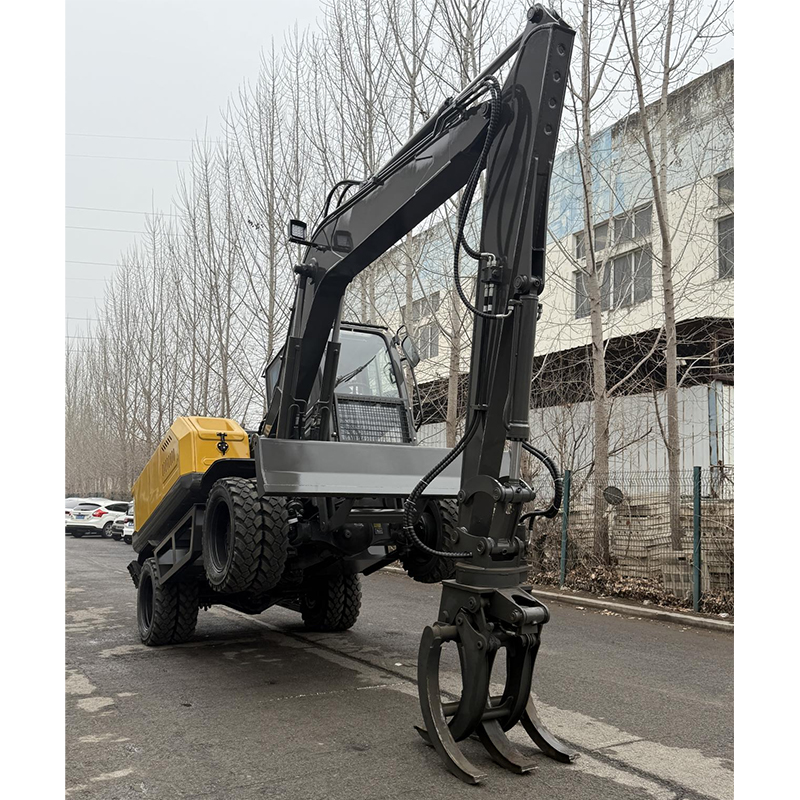

夾木器抓舉重量

Gripping weight of wood gripper

1200Kg

夾木器開口寬度

Opening width of wood clamp

1300(mm)

動力系統Dynamical system

發動機型號Model

玉柴

額定功率power

62.5KW

冷卻方式Cooling method

水冷

液壓系統Hydraulic System

額定工作壓力Operating Pressure

24mpa

液壓泵Main pump

變量柱塞Variable plunger

液壓閥

韓國進口Korea

行走馬達

柱塞Plunger

形式Shape

負載敏感系統

Load Sensing System

性能參數performance parameter

鏟斗容量（SAE）Bucket Capacity

0.38m3

爬坡能力Climbing ability

30°

最大挖掘力Maximum digging force

8200N

行走速度Travel speed

30KM/h

回轉速度Unit swing speed

9-11r/min

液壓油容量Hydraulic oil capacity

110L

燃油箱容量Hydraulic tank capacity

130L

駐車制動Parking brake

斷氣剎Air break

行車制動service brake

氣剎Kill

穩定裝置Stabilizers

支腿Legs
